Samekh Active.
The active profile: a shallow aluminium shell for users with good trunk control who want maximum freedom of arm movement.
- Material
- Aluminium
- UDI-DI
- 8053904843206
Maximum load
120kg
Seat width
26–46cm
THE BACKBONE’S BACKBONE
The postural backrest SAMEKH is a product entirely made by Offcarr since its project. It is design to perfectly support the trunk of active people. Careful attention is paid to components: breathable cloth materials and metal body with unique design. The user’s wellness is a warranty with SAMEKH.
LIGHTNESS AND AESTHETICS
Available the aluminium and carbon version. Different depth levels are available to keep the trunk safe and stable: active, deep and extra-deep. The upholstery is made up of different foam levels, highly breathable and active in supporting the user.
The fastening of SAMEKH postural backrest can be centred (with an height adjustability of 3,5 cm) or lateral (double) with a percentage of 100% of height adjustability.
SYMBOLS & STRUCTURES
SAMEKH is the fifteenth letter of the Phoenician alphabet . The symbol resembles a spinal cord and the word’s meaning is “pillar”. Posture really matters to live an healthy life: Offcarr developed SAMEKH to give an answer to those active users looking for quality and support.
Variants and models
This product is available in the following variants:

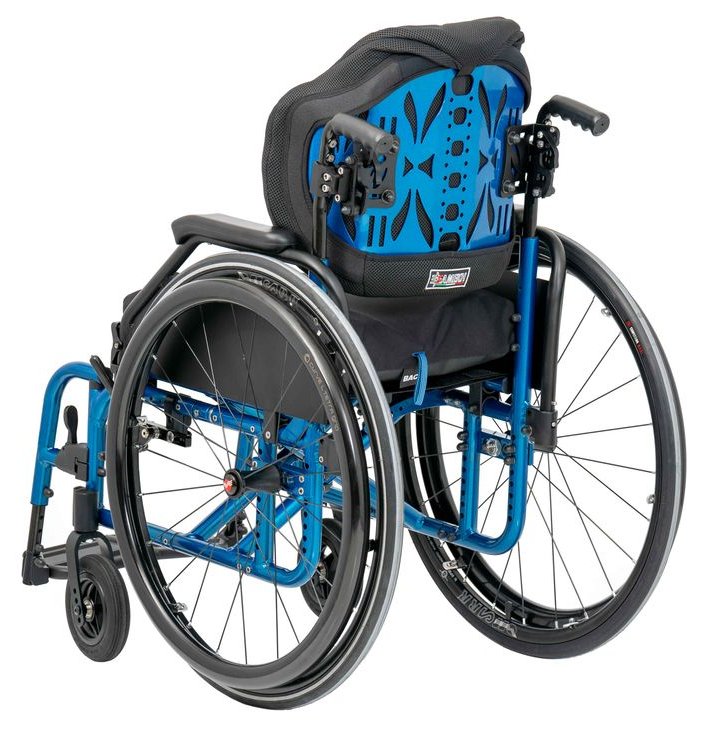

Postural backrests for active users, designed and made by OFFCARR. Aluminium-alloy or carbon-fibre shell, light and breathable thanks to its large openings; the slightly back-bent top edge avoids pressure points during transfers and dressing, the shaped upper profile frees the shoulder blades for a more efficient push.

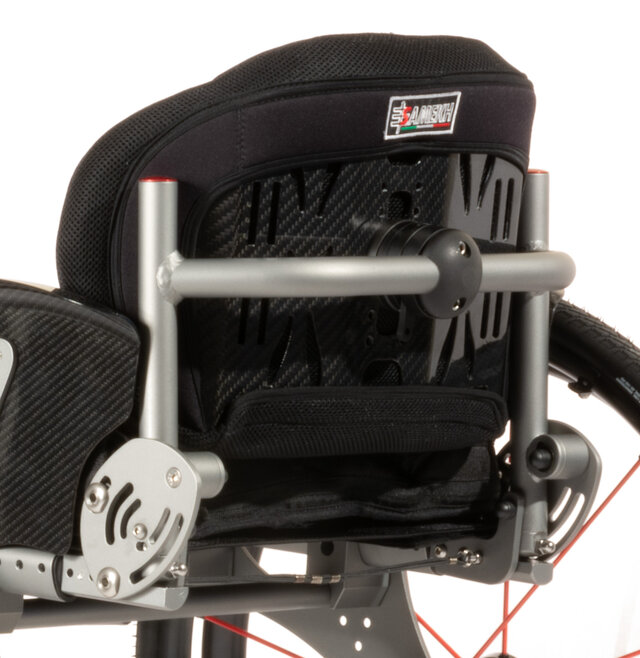

Mounts. A single central mount (quick-release or fixed) for rigid frames, or twin quick-release side mounts compatible with folding or rigid wheelchairs with 19–28 mm tubes, adjustable in height, depth and angle. Chosen with an OFFCARR wheelchair, the system is integrated into the project from the order onwards.
Sizes and accessories. Widths from 26 to 46 cm (carbon shell 34–44), aluminium shell in black or in the wheelchair's colour; mount for the OFFCARR orbital headrest, swing-away lateral supports, pads and covers.
Samekh Deep.
Contoured profile: the deeper aluminium shell cradles the trunk and gives lateral stability where needed.
- Material
- Aluminium
- UDI-DI
- 8053904843206
Samekh Extra Deep.
The deepest profile of the line, for maximum lateral containment while keeping the light aluminium shell.
- Material
- Aluminium
- UDI-DI
- 8053904843206
Samekh Active C.
The active profile with a carbon-fibre shell: lighter and more flexible, available in sizes 34 to 44 cm, with a look of its own.
- Material
- Carbon
- UDI-DI
- 8053904843213
Technical specifications
Technical and performance data
- Material
- Aluminium / Carbon
- UDI-DI
- 8053904843206, 8053904843213
- Maximum load
- 120 kg
- Crash tested
- Yes (maximum load 120 kg)
Measurements and dimensions
All configurable measurements
Seat
- Seat widthL
- 26–46 cm 2 cm steps
- Backrest heightHS
- 16–37 cm
- Seat depthP
- 6–18 cm
Some measurements are averaged.
Downloads
Documentation for this model
