• Folding frame
  • Aluminium frame
  • Straight front frame
  • Highly adjustable
  • Removable footrest
  • Maximum load 120 kg
  • MDR 2017/745 compliant product
Lightweight

Althea.R / Althea.M.

Downloads

Reclining or dampened backrest

Part of the Althea family 4 models →
Weight
17.1kg
Maximum load
120kg
Seat width
34–60cm
Rear wheels
12″ · 20″ · 22″ · 24″ · 25″

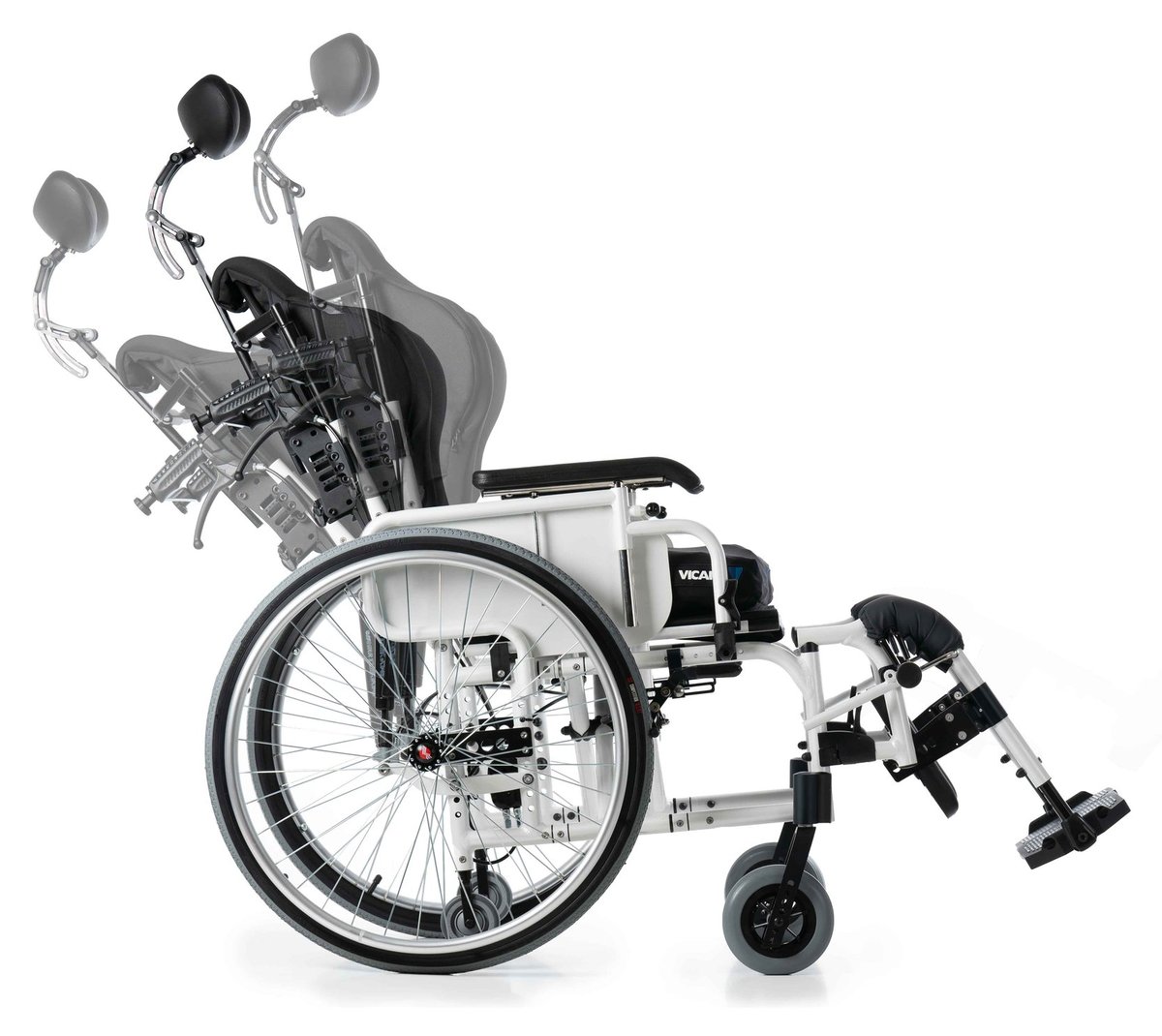

ALTHEA, BUT RECLINING

ALTHEA.R is a version built around the reclining backrest. The angle, up to 135°, is easy to adjust thanks to the two gas pistons controlling it. Elevating footrests, headrests, swingaway supports and other accessories make it comfortable and versatile.

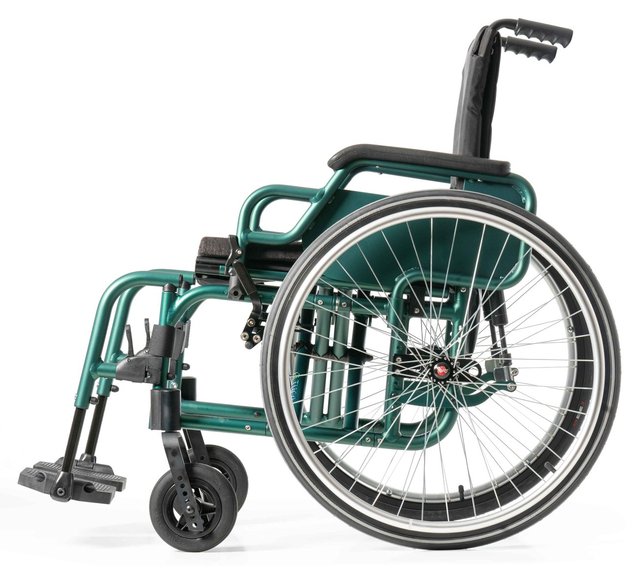

ALTHEA, BUT DAMPENED

Thanks to dampened gas springs, ALTHEA.M follows rapid movements of the trunk and lower limbs without losing the postural asset. The springs are available in six different levels of resistance.

Althea.R / Althea.M — lightweight folding aluminium wheelchair

Variants and models

This product is available in the following variants:

Variant WeightUDI-DI
Althea.19M from 17.1 kg8053904841158
Althea.19R from 19.2 kg8053904841165
Althea.M from 17.1 kg8053904841134
Althea.R from 19.2 kg8053904841127

Technical specifications

Technical and performance data

Frame
Folding
Material
Aluminium
UDI-DI
8053904841127, 8053904841165, 8053904841134, 8053904841158
Tube section
25 mm
Weight
from 17.1 kg (40×40 cm seat)
Transport weight
from 10.1 kg
Maximum load
120 kg
Axle
Adjustable
Removable footrests
Possible
Rear wheels
12″, 20″, 22″, 24″, 25″
Front casters
80 mm, 100 mm, 125 mm, 150 mm, 175 mm
Frame colours
Available in 32 colours
Crash tested
No

Measurements and dimensions

All configurable measurements

Seat

Seat widthL
34–60 cm 2 cm steps
Backrest heightHS
29–60 cm
Seat depthP
36–50 cm 2 cm steps
Seat heightHA · HP
HA 38–54 cmHP 34–50 cm

Overall dimensions

Width with wheels
L + 21 cm
Folded width
32 cm
Overall length
removable footrests ≈ 103 cmwithout footrests ≈ 83 cm P 40 cm · with wheelbase extension plate

Some measurements are averaged.

Options and configurations

The choices that characterise this model — every option is in the order form

Front frame shapes
U shapeAbducted
Possibilities
Extendable seat sling
Pushrims
Aluminium silverAluminium darkPolished steelOVAAL aluminium silverOVAAL aluminium darkGekkoTitaniumRubber coatedOVAAL G (with rubber insert)Curve LQuadro (rubber coated)Tetragrip (rubber coated)

Downloads

Documentation for this model

They go well together.

Seating, backrest and add-ons that complete Althea.R / Althea.M.

Samekh Samekh. The OFFCARR postural backrest for active users.
Easywheel Easywheel. The third wheel for leaving the tarmac.

Other models.

Althea / Althea Plus.

Maximum load 150 kg

Lightweight, transit approved

Weight
from 15.8 kg
Family
Althea

Althea.19 / Althea.19 Plus.

Maximum load 150 kg

Lowered Althea, hand-foot propulsion

Weight
from 15.8 kg
Family
Althea

The images are indicative: accessories may vary with the supply batch. Some accessories may not always be available, or compatible with the wheelchair and the options chosen. The wheelchairs in the photographs are not always in their base setup. OFFCARR may change and improve its products without notice.
