• Folding frame
  • Aluminium frame
  • Straight front frame
  • Highly adjustable
  • Removable footrest
  • Fixed footrest
  • Maximum load 75 kg
  • Crash tested
  • MDR 2017/745 compliant product
Kids

Emerald.

Downloads

Ultralight folding chair for kids

Part of the Vega family 3 models →
Weight
11.0kg
Maximum load
75kg
Seat width
24–36cm
Rear wheels
20″ · 22″ · 24″

Emerald is a children's folding aluminium wheelchair by OFFCARR, built in Villa del Conte (Padova), Italy: from 11.0 kg, maximum load 75 kg, seat 24–36 cm.

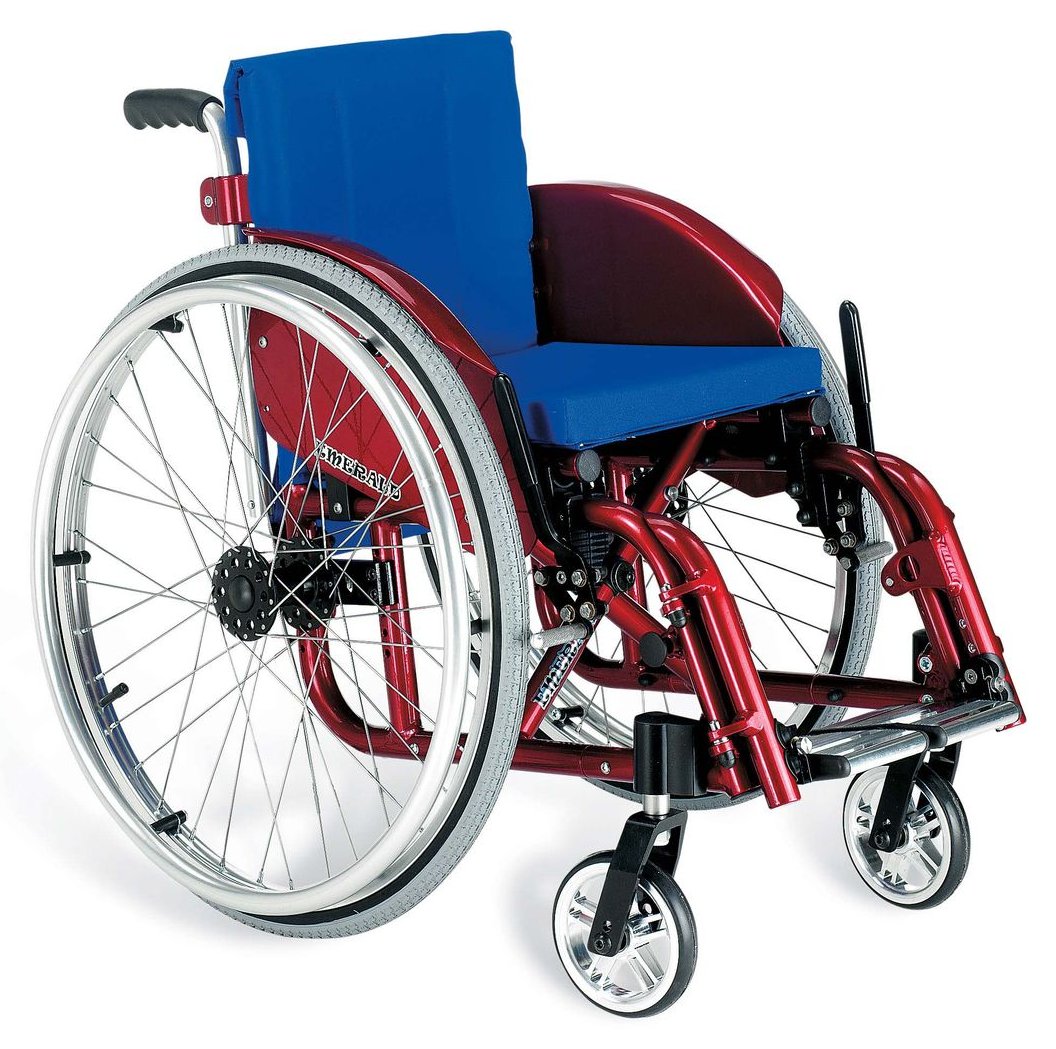

Emerald — children's folding aluminium wheelchair

Technical specifications

Technical and performance data

Frame
Folding
Material
Aluminium
UDI-DI
8053904841240
Tube section
25 mm
Weight
from 11.0 kg (32×32 cm seat)
Maximum load
75 kg
Axle
Adjustable
Removable footrests
Possible
Rear wheels
20″, 22″, 24″
Front casters
80 mm, 100 mm, 125 mm, 150 mm
Frame colours
Available in 32 colours
Crash tested
Yes (maximum load 75 kg)

Measurements and dimensions

All configurable measurements

Seat

Seat widthL
24–36 cm 2 cm steps
Backrest heightHS
25–41 cm 2 cm steps
Seat depthP
26–36 cm 2 cm steps
Seat heightHA · HP
HA 40–48 cmHP 36–46 cm 2 cm steps

Overall dimensions

Width with wheels
L + 24 cm measured at 3° camber; L 34: +23 cm
Folded width
37 cm without wheels 24 cm
Overall length
≈ 77 cm average

Some measurements are averaged.

Options and configurations

The choices that characterise this model — every option is in the order form

Front frame shapes
U shapeAbducted
Front castors
Solid - Plastic rim - BlackSolid - Plastic rim - GreySolid - Aluminium black rimSolid - Aluminium silver rimPneumatic - BlackPneumatic - GreyTransparent
Pushrims
Aluminium silverAluminium darkPolished steelOVAAL aluminium silverOVAAL aluminium darkGekkoTitaniumRubber coatedOVAAL G (with rubber insert)Curve LQuadro (rubber coated)Tetragrip (rubber coated)

Downloads

Documentation for this model
