• Titanium frame
  • Y-shaped front frame
  • Adjustable COG
  • Highly adjustable
  • Maximum load 120 kg
  • MDR 2017/745 compliant product
Ultralight

Venus Elite.

Downloads

Venus, entirely in titanium

Part of the Venus family 3 models →
Weight
8.9kg
Maximum load
120kg
Seat width
34–48cm
Rear wheels
24″ · 25″

TITANIUM VENUS

VENUS’ beauty expands to VENUS ELITE, telling a different story of small, creative details. VENUS ELITE is an ultralight wheelchair with titanium frame and the possibility to choose the frame length. The seat is independent from the rest of the frame and completely adjustable in space and tilt.

In detail

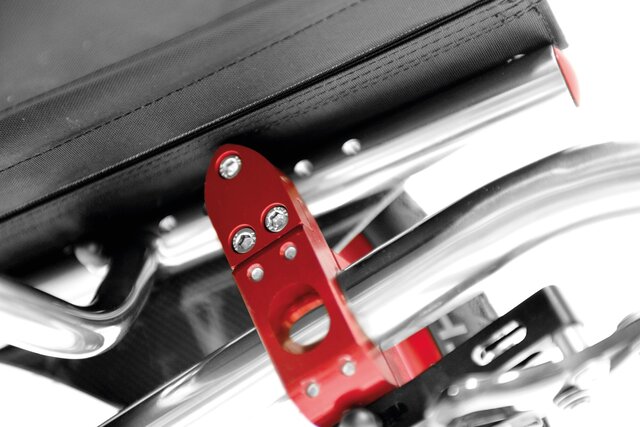

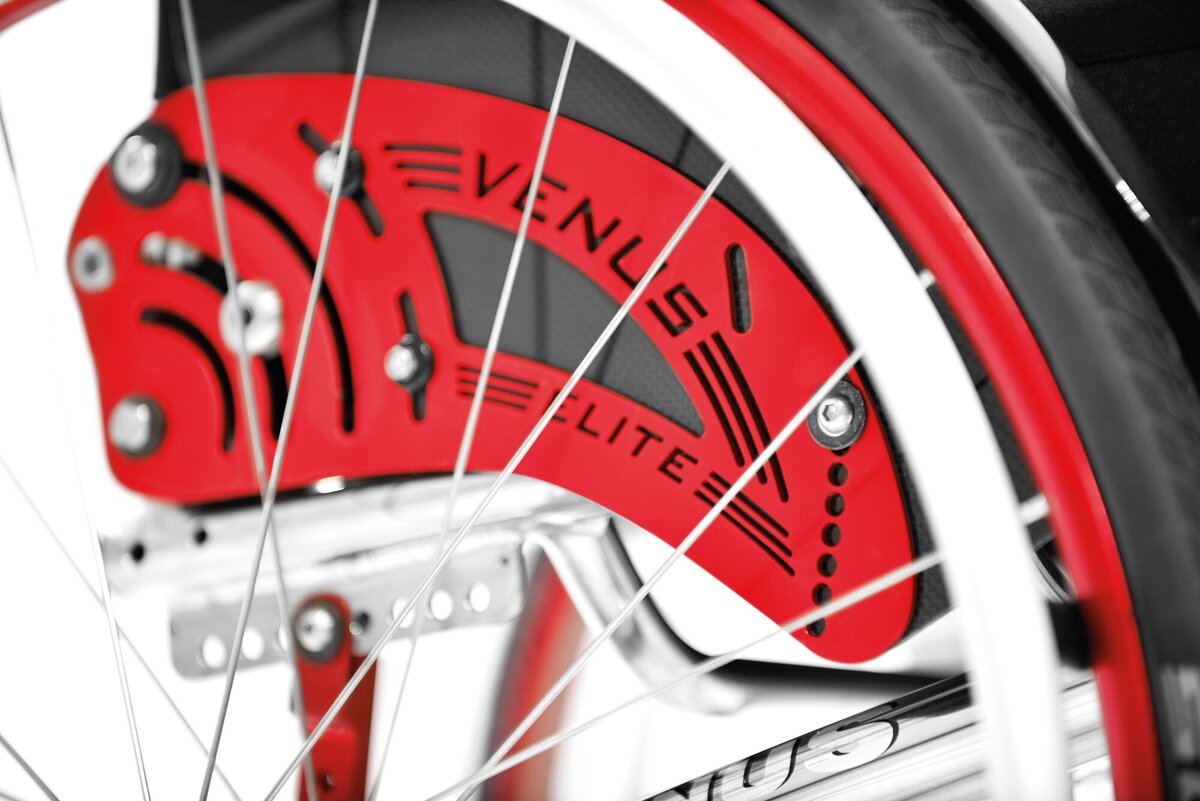

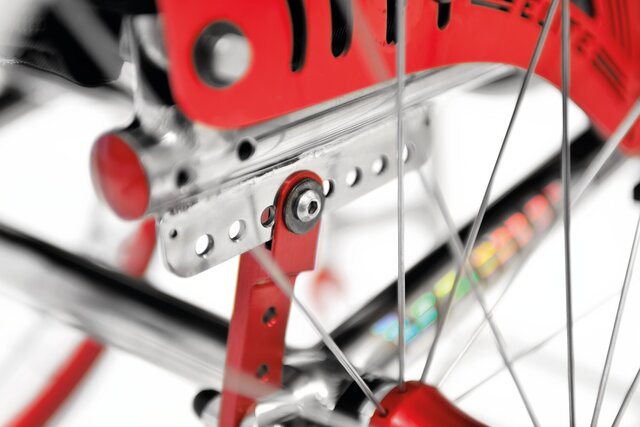

Venus Elite — In detail

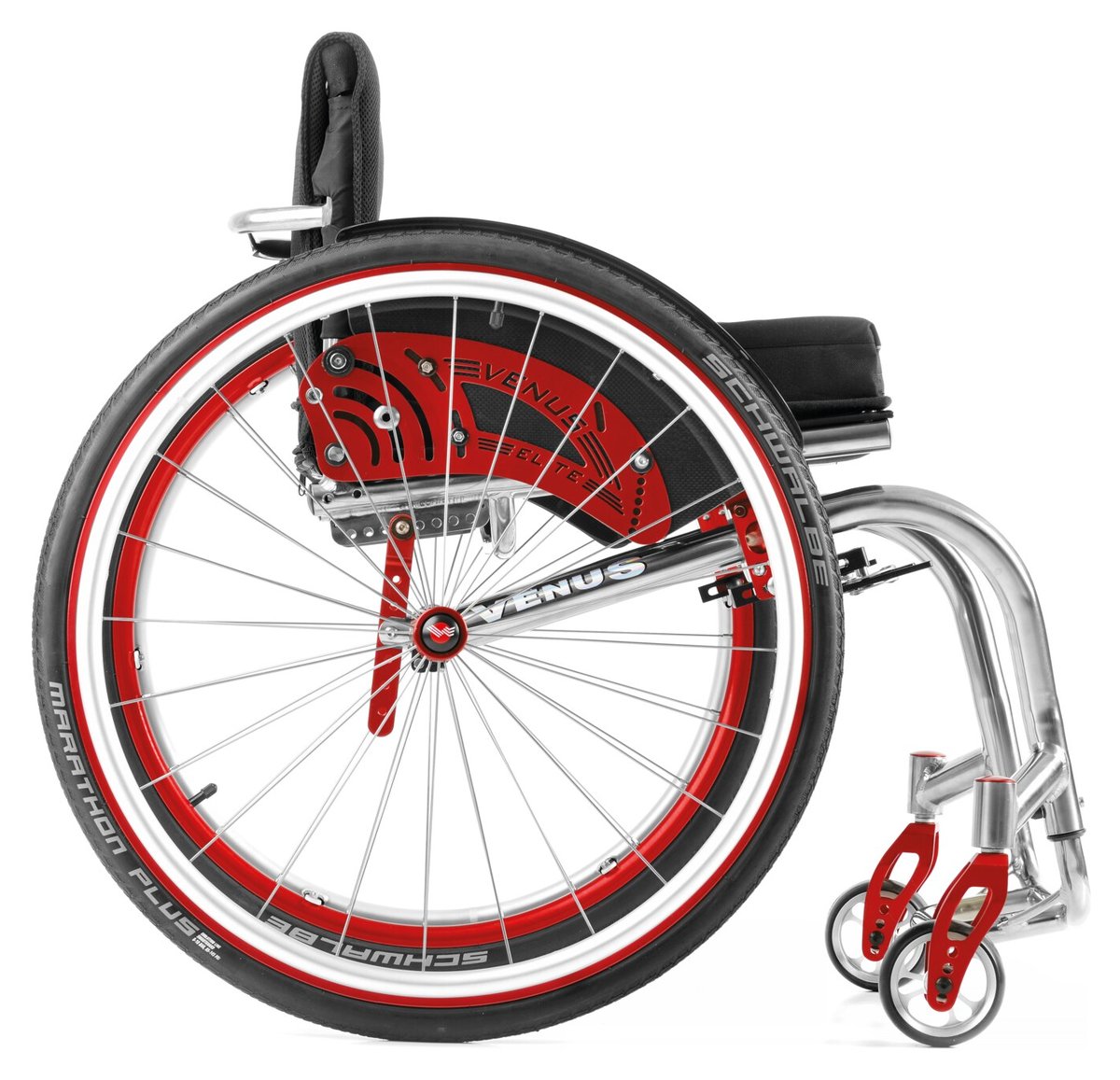

Venus Elite — ultralight rigid titanium wheelchair

ECLECTIC

Precious, light, resistant and eclectic. The orthopaedic wheelchair VENUS ELITE is highly adjustable and can rapidly change the setup to follow bodies’ postural needs. As for VENUS, VENUS ELITE is endowed with a folding down and adjustable backrest; frame and seat are completely made out of titanium and you can choose shock absorbers to be put under the seat.

AS YOU WANT ME

VENUS ELITE comes to life after your choices. Pick your colours, let VENUS ELITE be the natural consequence of your mood. Choose the right shade of colour for your anodized set (including hubs, rear wheel rims if LIGHT model, forks, clothes guard support and other little details).

STYLE

Creating VENUS ELITE is like creating the perfect wheelchair for every adventure. The clean and refined design is versatile and highly resistant: VENUS ELITE is perfectly balanced on the user’s need, being 100% customised. Its style is dynamic, unique.

Technical specifications

Technical and performance data

Frame
Rigid
Material
Titanium
UDI-DI
8053904841523
Tube section
31.7 mm
Weight
from 8.9 kg (40×40 cm seat)
Transport weight
from 5.8 kg
Maximum load
120 kg
Axle
Adjustable
Removable footrests
No
Rear wheels
24″, 25″
Front casters
80 mm, 100 mm, 125 mm, 150 mm
Frame colours
Available in 32 colours
Crash tested
No

Measurements and dimensions

All configurable measurements

Seat

Seat widthL
34–48 cm 2 cm steps
Backrest heightHS
27–39 cm 2 cm steps
Seat depthP
36–48 cm 2 cm steps
Seat heightHA · HP
HA 46–50 cmHP 39–47 cm 2 cm steps

Overall dimensions

Width with wheels
L + 23 cm (1° camber)L + 25 cm (4° camber) 1° camber not available on L 34; 4° camber not available on L 44 and 46; Light wheels
Width without wheels
L + 13 cm
Minimum frame footprint
height ≈ 40 cmlength ≈ 78 cm
Overall length
≈ 84 cm P 40 cm · COG 7 cm

Some measurements are averaged.

Options and configurations

The choices that characterise this model — every option is in the order form

Footrests
OpenClosed (carbon fibre)Closed adjustable angle (carbon fibre)Flip-up
Sideguards
Fixed with carbon fibre wingFixed with carbon fibre straightDetachable with carbon fibre wingDetachable with carbon fibre straightCarbon fibre
Pushrims
Aluminium silverAluminium darkPolished steelOVAAL aluminium silverOVAAL aluminium darkGekkoTitaniumRubber coatedOVAAL G (with rubber insert)Curve LQuadro (rubber coated)Tetragrip (rubber coated)

Downloads

Documentation for this model

They go well together.

Seating, backrest and add-ons that complete Venus Elite.

Samekh Samekh. The OFFCARR postural backrest for active users.
Easywheel Easywheel. The third wheel for leaving the tarmac.
