Weight
9.7kg
Maximum load
120kg
Seat width
34–48cm
Rear wheels
24″ · 25″
PROUDLY FIERCE

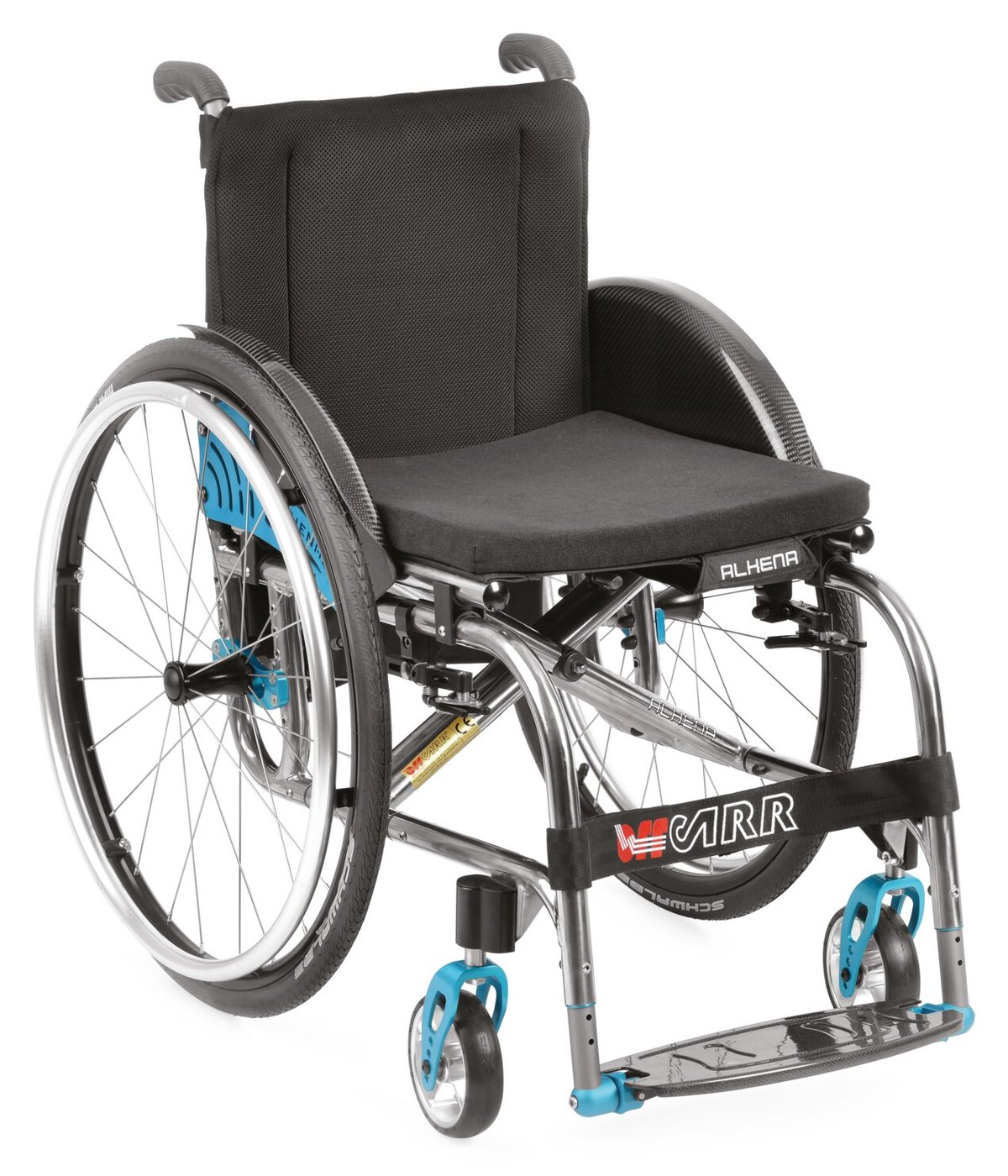

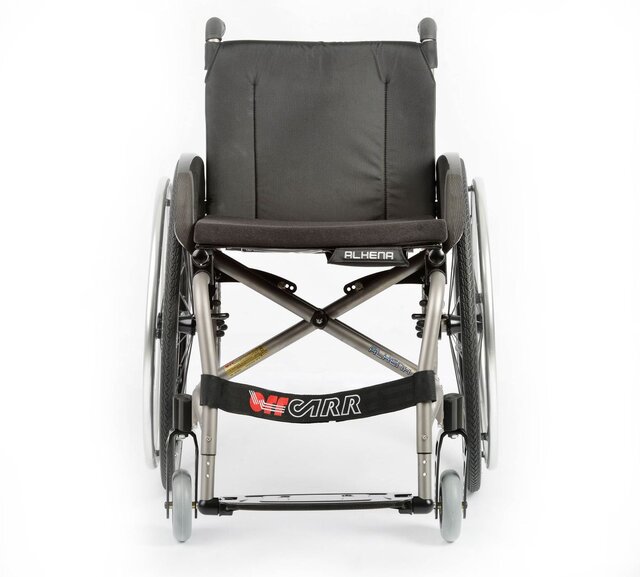

ALHENA is an ultralight foldable wheelchair, entirely made out of titanium and carbon details. Unique and stylish, ALHENA combines aesthetic and the best pushing experience thanks to its smoothness. Strong and reliable, the double titanium crossbar provides higher safety and is included into the basis configuration. ALHENA is highly versatile and the lightest foldable model among the other foldable Offcarr wheelchairs.

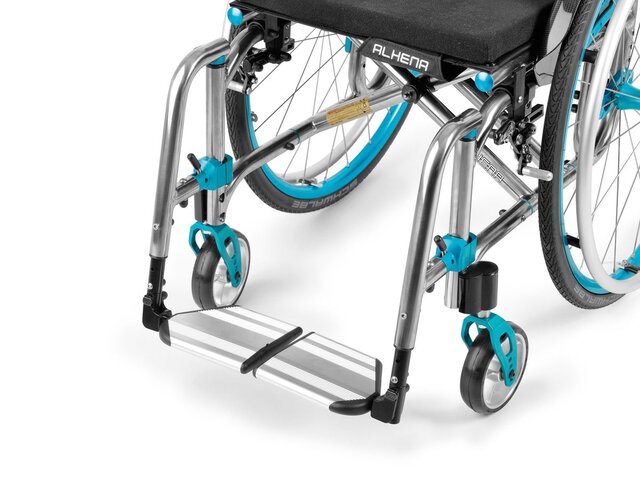

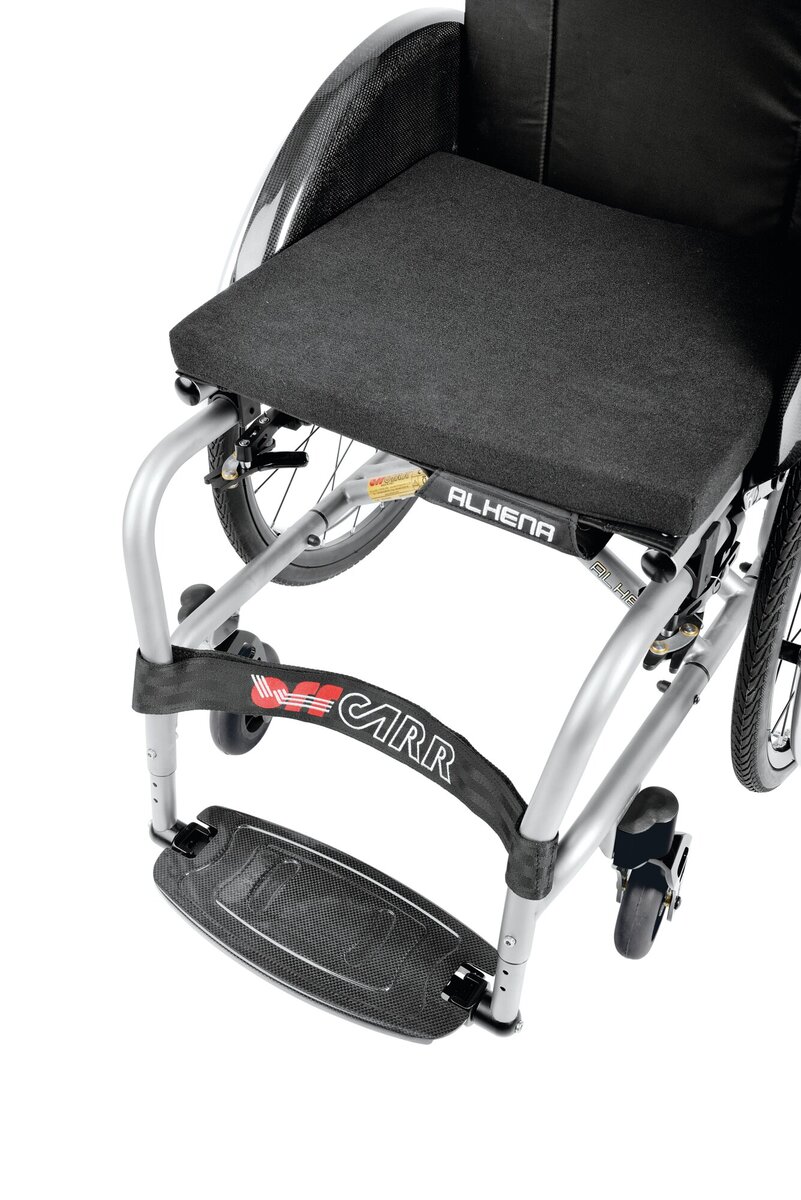

In detail
A GAME OF COMPLEX SEMPLICITY

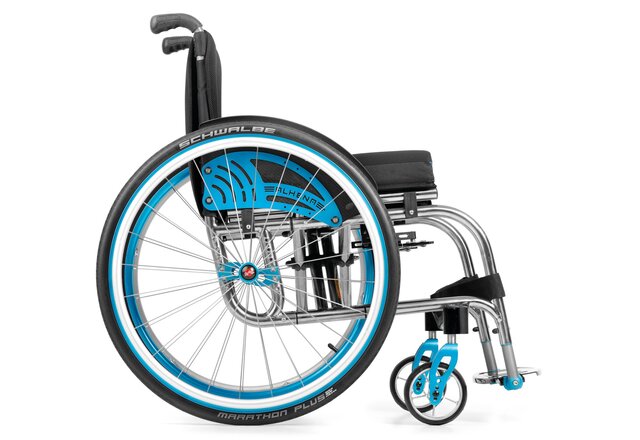

ALHENA’s frame has a unique design, full of adjustable devices. The HwP (Helicoid wheel Plate) details give the user a wide range of adjustable spots for the rear wheels, amplifying the possible set ups and balance tests anyone could do.
UNMISTAKABLE STYLE
Queen of lightness since its very first creation, ALHENA is unmistakably stylish and smooth when pushed. A highly refined orthopaedic wheelchair completely Made in Italy only by request. Top quality materials are used to build this responsive, stable and ultralight wheelchair.
A LIGHTNESS PROJECT
Carbon is well renowned for being a super light and super strong material. Hard to work, stylish to see, responsive. But what about applying carbon details to a titanium wheelchair? ALHENA combines these two sophisticated materials and becomes a top quality wheelchair with a very small weight. Carbon sideguards, automatic closure foot-plate and details make the wheelchair active and ultralight you can’t even imagine. 9,7 kg with wheels for a 38×40 seat. Are you ready to try ALHENA?
Technical specifications
Technical and performance data
- Frame
- Folding
- Material
- Titanium
- UDI-DI
- 8053904841608
- Tube section
- 25.4 mm
- Weight
- from 9.7 kg (38×40 cm seat)
- Maximum load
- 120 kg
- Axle
- Adjustable
- Removable footrests
- Possible
- Rear wheels
- 24″, 25″
- Front casters
- 80 mm, 100 mm, 125 mm, 150 mm, 175 mm
- Frame colours
- Available in 32 colours
- Crash tested
- Yes (maximum load 120 kg)
Measurements and dimensions
All configurable measurements
Seat
- Seat widthL
- 34–48 cm 2 cm steps
- Backrest heightHS
- 29–41 cm 2 cm steps
- Seat depthP
- 34–50 cm 2 cm steps
- Seat heightHA · HP
- HA 42–50 cmHP 38–46 cm
Overall dimensions
- Width with wheels
- L + 18 cm (1° camber)L + 23 cm (4° camber) 4° camber: +24 cm on L 40; Light wheels
- Folded width
- 29 cm
- Overall length
- fixed footrests ≈ 87 cmremovable footrests ≈ 95 cm P 40 cm · COG 6 cm
Some measurements are averaged.
Options and configurations
The choices that characterise this model — every option is in the order form
Downloads
Documentation for this model
They go well together.
Seating, backrest and add-ons that complete Alhena.
Related products.
The images are indicative: accessories may vary with the supply batch. Some accessories may not always be available, or compatible with the wheelchair and the options chosen. The wheelchairs in the photographs are not always in their base setup. OFFCARR may change and improve its products without notice.
