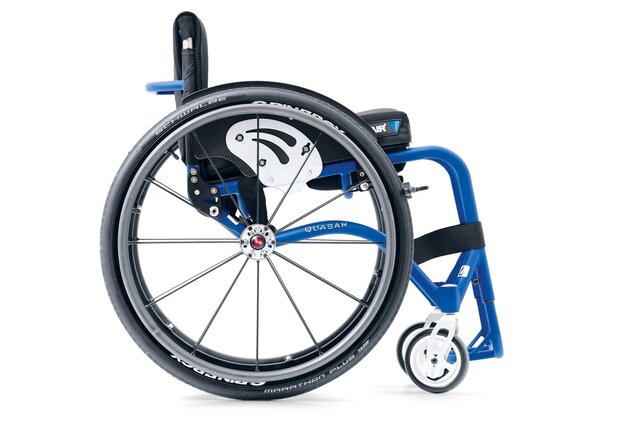

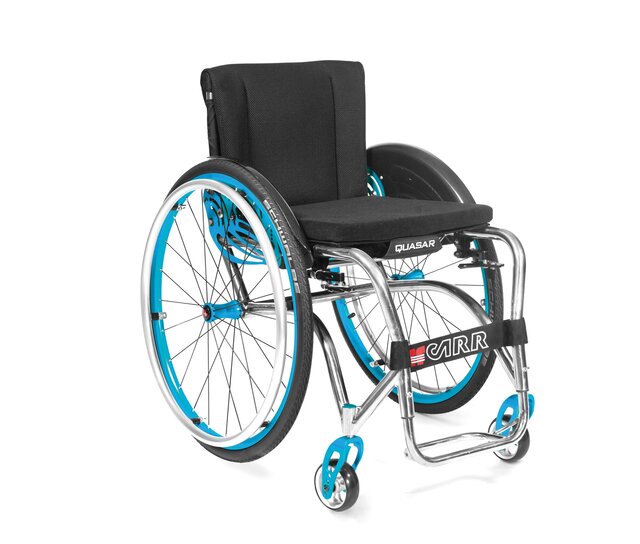

Quasar / Quasar GT.
Closed titanium frame, from 7 kg
Part of the Quasar family 5 models →Weight
7.0kg
Maximum load
120kg
Seat width
34–48cm
Rear wheels
24″ · 25″
ESSENTIALLY ULTRALIGHT

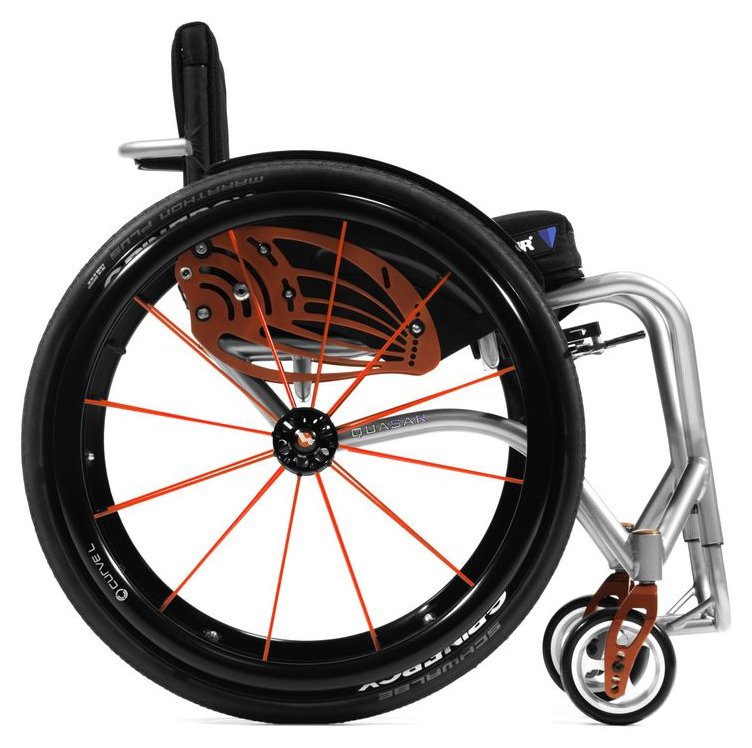

QUASAR is an orthopaedic ultralight wheelchair with rigid titanium frame. Extreme lightness, essentially pure. QUASAR weights 7 kg (with rear wheels). Nothing compares to QUASAR!
PERSONAL QUASAR
In its essential lines QUASAR keeps being a completely customizable ultralight wheelchair. Every single frame is created from a sophisticated drawing based on the user’s needs and body measures. QUASAR blends totally with the user. Available with fixed or adjustable frame for the user needing changes on its set up every time he/she needs it.

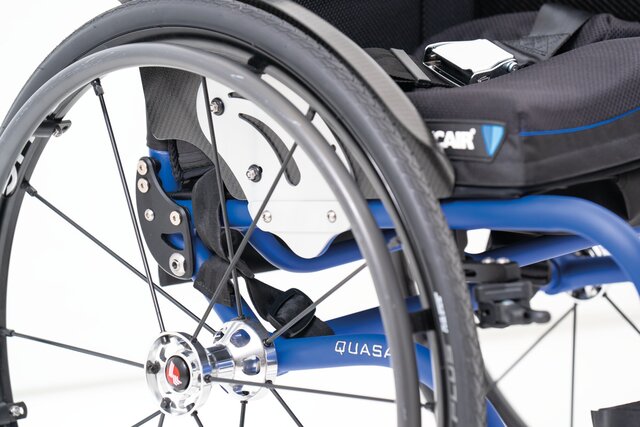

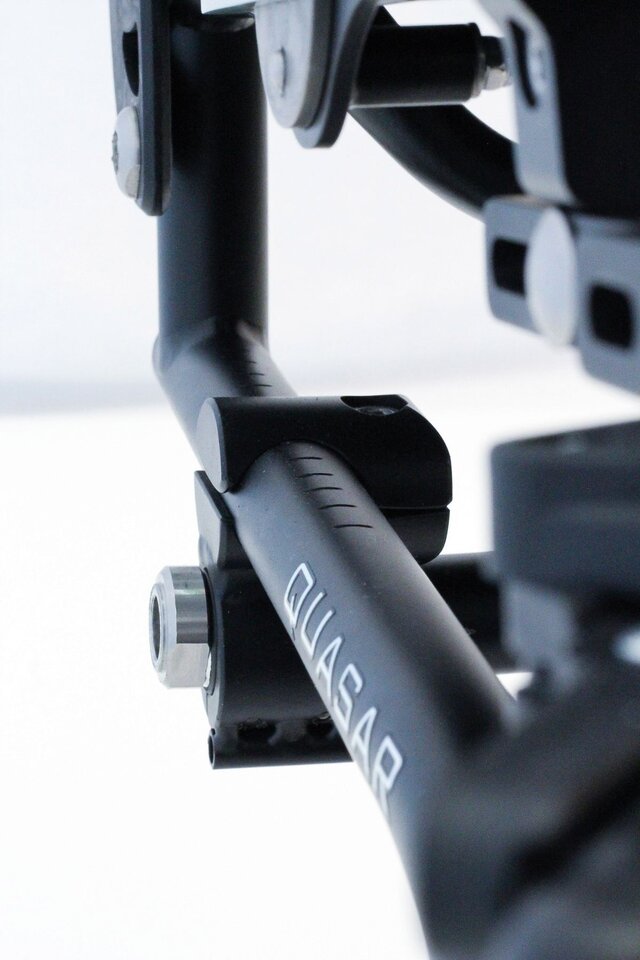

In detail
UNIQUE

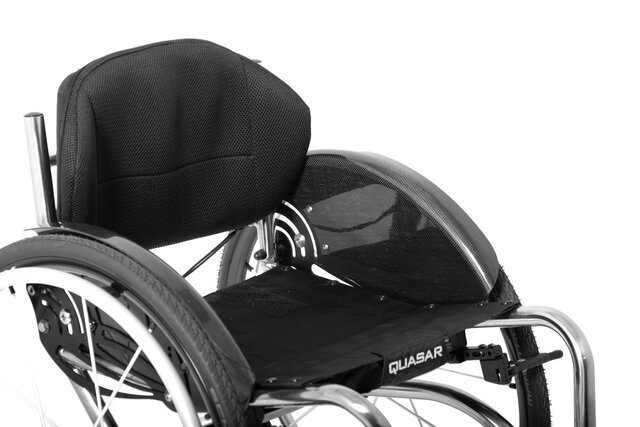

The orthopaedic wheelchair QUASAR is unique and original, giving a concrete answer to your needs. You can choose among three different shapes for the inferior part of the frame, ergo or standard seat and many other configurations. Being a completely customized wheelchair has its advantages! The backrest folds down towards the seat and is adjustable. The frame is welded or adjustable. Titanium footrest with carbon foot-plate on request.
CRASH TESTED

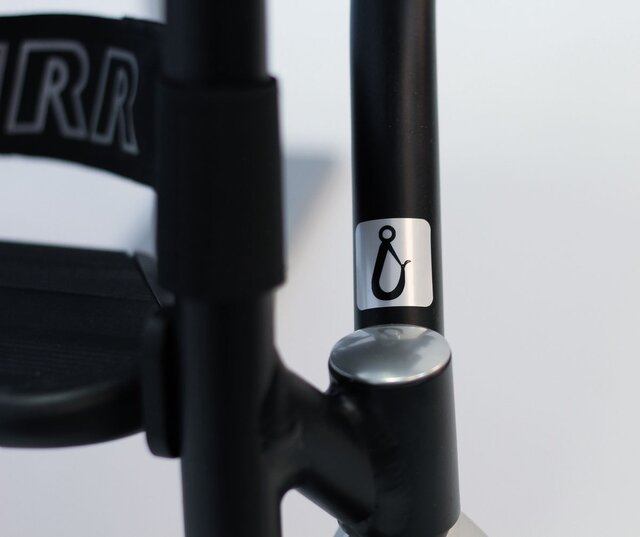

The security of the ultralight wheelchair QUASAR has been tested to guarantee safe travels by car. The QUASAR GT version meets the international safety standards thanks to some carefully designed features: sideguards with stops, safety belt and adhesive hook drawings to help you understand where you can fasten the wheelchair in your car (hooks not provided by Offcarr).
Variants and models
This product is available in the following variants:
| Variant | Axle | Weight | Transport weight | Crash tested | Seat width | Seat depth | UDI-DI |
|---|---|---|---|---|---|---|---|
| Quasar Asse Fisso | Fixed | from 7.0 kg | from 4.0 kg | No | 34–48 cm | 36–50 cm | 8053904842209 |
| Quasar Asse Regolabile | Adjustable | from 7.4 kg | from 4.4 kg | No | 34–48 cm | 36–50 cm | 8053904842209 |
| Quasar GT Asse Fisso | Fixed | from 7.6 kg | from 4.8 kg | Yes (maximum load 120 kg) | 34–44 cm | 36–46 cm | 8053904842223 |
| Quasar GT Asse Regolabile | Adjustable | from 8.0 kg | from 5.2 kg | Yes (maximum load 120 kg) | 34–44 cm | 36–46 cm | 8053904842223 |
Technical specifications
Technical and performance data
- Frame
- Rigid
- Material
- Titanium
- UDI-DI
- 8053904842209, 8053904842223
- Tube section
- 25.4 mm
- Weight
- from 7.0 kg (38×40 cm seat)
- Transport weight
- from 4.0 kg
- Maximum load
- 120 kg
- Axle
- Fixed / Adjustable
- Removable footrests
- No
- Rear wheels
- 24″, 25″

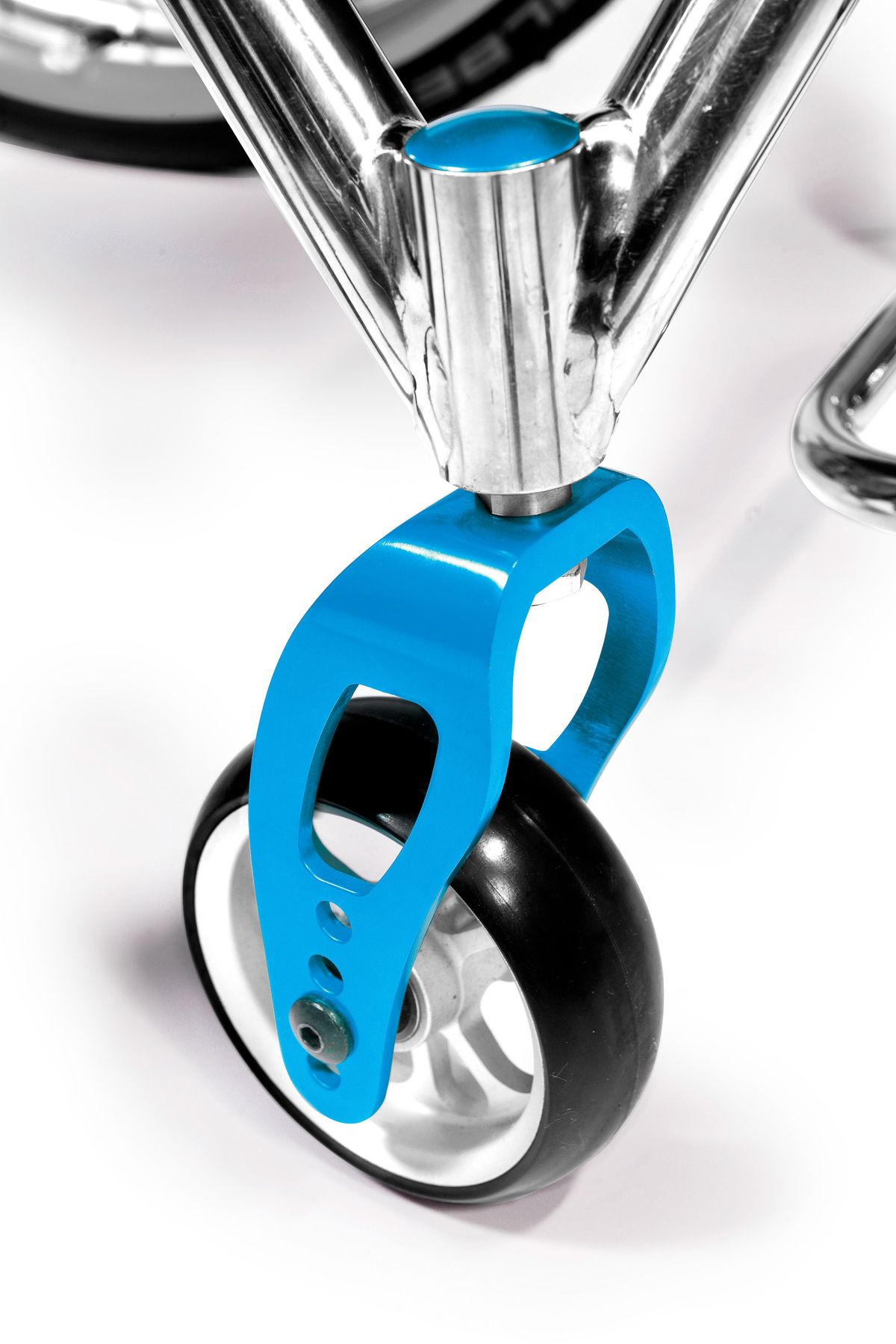

- Front casters
- 80 mm, 100 mm, 125 mm, 150 mm
- Frame colours
- Available in 32 colours
- Crash tested
- Yes (maximum load 120 kg)
Measurements and dimensions
All configurable measurements
Seat
- Seat widthL
- 34–48 cm 2 cm steps
- Backrest heightHS
- 27–41 cm 2 cm steps
- Seat depthP
- 36–50 cm 2 cm steps
- Seat heightHA · HP
- HA 46–50 cmHP 40–48 cm 2 cm steps
Overall dimensions
- Width with wheels
- L + 18 cm (1° camber)L + 24 cm (4° camber) Light wheels
- Width without wheels
- L + 10 cm
- Minimum frame footprint
- height ≈ 40 cmlength ≈ 78 cm
- Overall length
- ≈ 78 cm P 40 cm · COG 9 cm · α 83°
Some measurements are averaged.
Options and configurations
The choices that characterise this model — every option is in the order form
Downloads
Documentation for this model
They go well together.
Seating, backrest and add-ons that complete Quasar / Quasar GT.
Other models.
The images are indicative: accessories may vary with the supply batch. Some accessories may not always be available, or compatible with the wheelchair and the options chosen. The wheelchairs in the photographs are not always in their base setup. OFFCARR may change and improve its products without notice.
