Weight
9.1kg
Maximum load
120kg
Seat width
34–44cm
Rear wheels
24″ · 25″
EASY AND SMOOTH

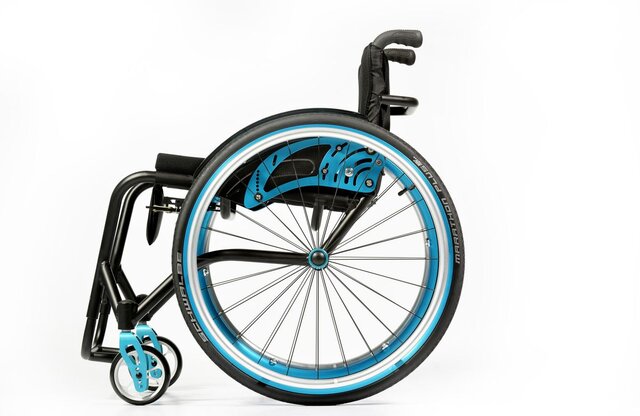

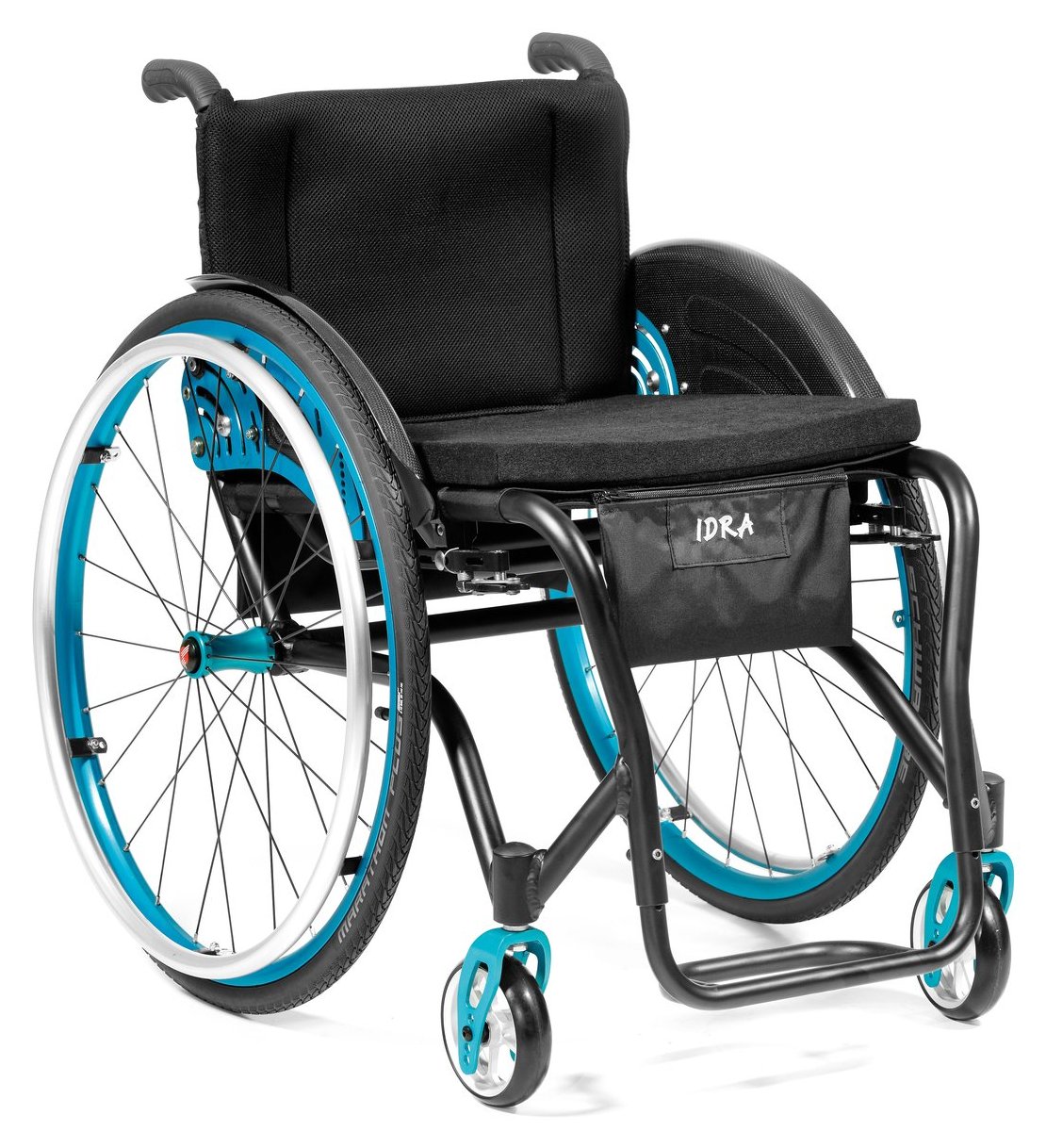

The orthopaedic wheelchair IDRA 2.0 is to be considered the aluminium sister of QUASAR. A wide range of possible configurations contributes to confirm IDRA 2.0 as a reliable and strong aid. The ultralight frame made out of aluminium is elegant and easy in its lines. Pushing IDRA 2.0 is easy and smooth, just give it a try to understand its potential.

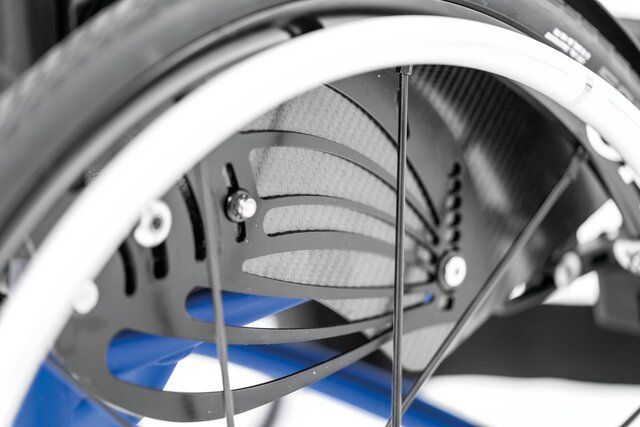

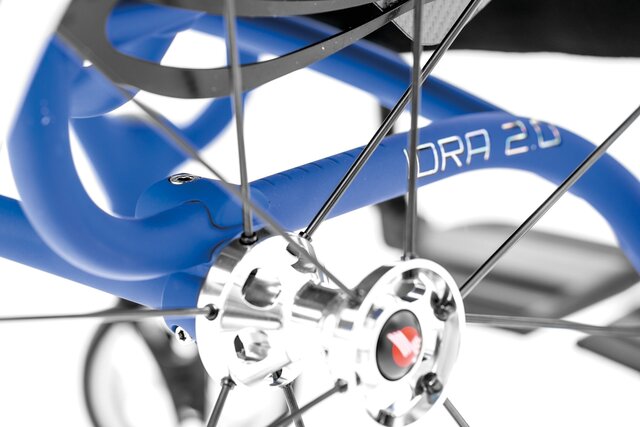

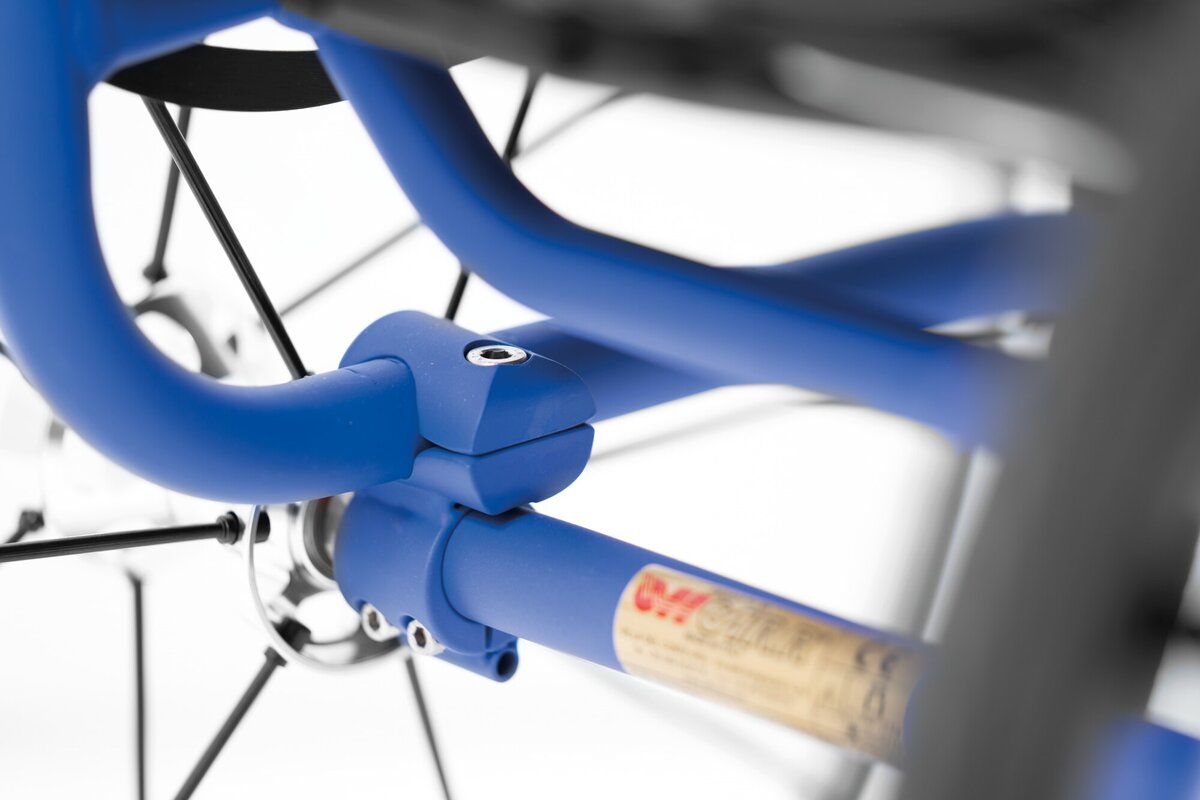

In detail
NEVER ENDING COMBINATIONS
Aluminium involves a great variety of choices on the frame, like the colour you want your wheelchair to be. IDRA 2.0 becomes the wheelchair made for you and on you. Offcarr produces tailor made aid since 1982 and every single request is accompanied by a technical drawing and its features. The production process starts with the customers’ measures: the wheelchair has to be perfect for the person needing it.
ELEGANT CURVES
IDRA 2.0’s design and the elegant curves generates an ultralight orthopaedic top quality wheelchair. Harmony and strength match the customer’s needs to ride a perfect, versatile aid.
ADJUSTED ON YOU
IDRA 2.0 gives you the opportunity to choose among a rigid version or an adjustable axle version. The adjustable axle version allows you to change setup whenever you want to find your perfect balance. You just have to feel yourself on your wheelchair, and IDRA 2.0 helps in doing it.
Variants and models
This product is available in the following variants:
| Variant | Photo | Axle | Weight | Transport weight |
|---|---|---|---|---|
| Idra 2.0 Asse Fisso |  | Fixed | from 9.1 kg | from 6.1 kg |
| Idra 2.0 Asse Regolabile |  | Adjustable | from 9.6 kg | from 6.6 kg |
Technical specifications
Technical and performance data
- Frame
- Rigid
- Material
- Aluminium
- UDI-DI
- 8053904841905
- Tube section
- 25 mm
- Weight
- from 9.1 kg (38×40 cm seat)
- Transport weight
- from 6.1 kg
- Maximum load
- 120 kg
- Axle
- Fixed / Adjustable
- Removable footrests
- No
- Rear wheels
- 24″, 25″
- Front casters
- 80 mm, 100 mm, 125 mm, 150 mm, 175 mm
- Frame colours
- Available in 32 colours
- Crash tested
- No
Measurements and dimensions
All configurable measurements
Seat
- Seat widthL
- 34–44 cm 2 cm steps
- Backrest heightHS
- 27–41 cm 2 cm steps
- Seat depthP
- 36–46 cm 2 cm steps
- Seat heightHA · HP
- HA 46–50 cmHP 40–48 cm 2 cm steps
Overall dimensions
- Width with wheels
- L + 18 cm (1° camber)L + 24 cm (4° camber) Light wheels
- Width without wheels
- L + 10 cm
- Minimum frame footprint
- height ≈ 40 cmlength ≈ 78 cm measurements from the Quasar table, as the catalogue states (p. 37)
- Overall length
- ≈ 78 cm P 40 cm · COG 9 cm · α 83°
Some measurements are averaged.
Options and configurations
The choices that characterise this model — every option is in the order form
Downloads
Documentation for this model
They go well together.
Seating, backrest and add-ons that complete Idra 2.0.
Other models.
Quasar / Quasar GT.
Closed titanium frame, from 7 kg
- Weight
- from 7.0 kg
- Transport
- from 4.0 kg
- Family
- Quasar
The images are indicative: accessories may vary with the supply batch. Some accessories may not always be available, or compatible with the wheelchair and the options chosen. The wheelchairs in the photographs are not always in their base setup. OFFCARR may change and improve its products without notice.
