Weight
7.5kg
Maximum load
120kg
Seat width
34–48cm
Rear wheels
24″ · 25″
Like a tailor made tuxedo

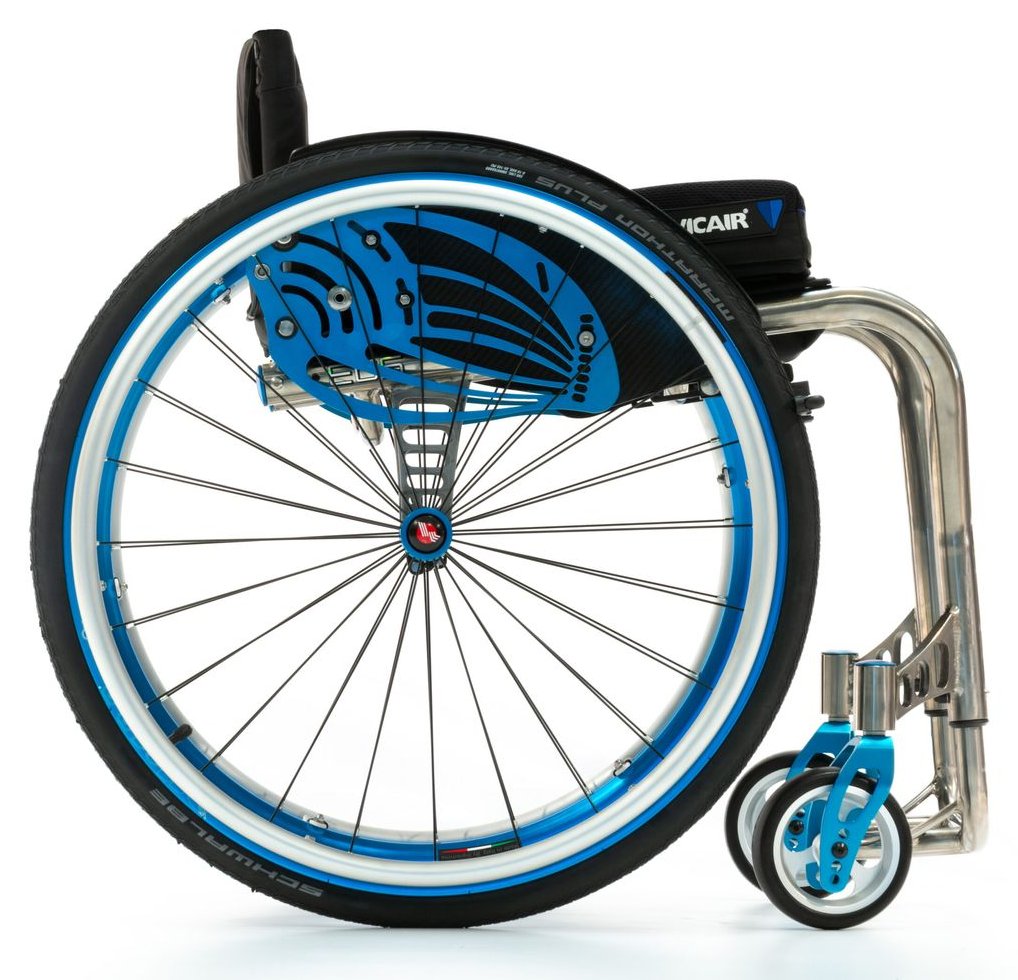

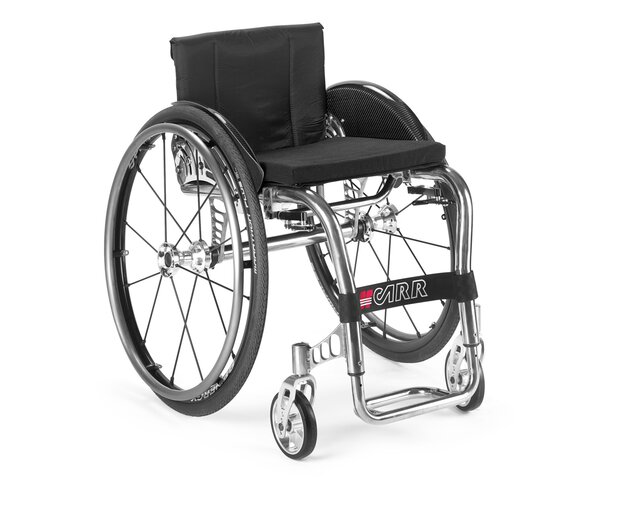

EOS' frame is rigid and made out of titanium. The single-tube design make EOS the perfect wheelchair for the ones looking for design, strength and essential vibes. Completely customized and tailor made, EOS is a sartorial masterpiece: an ultralight high quality wheelchair like the complete Offcarr range, exclusively made in Italy.

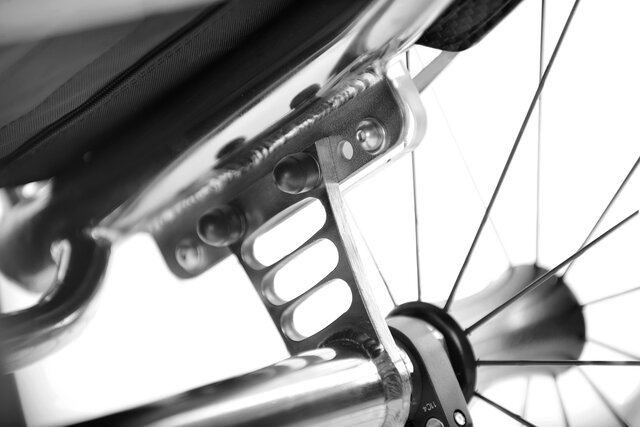

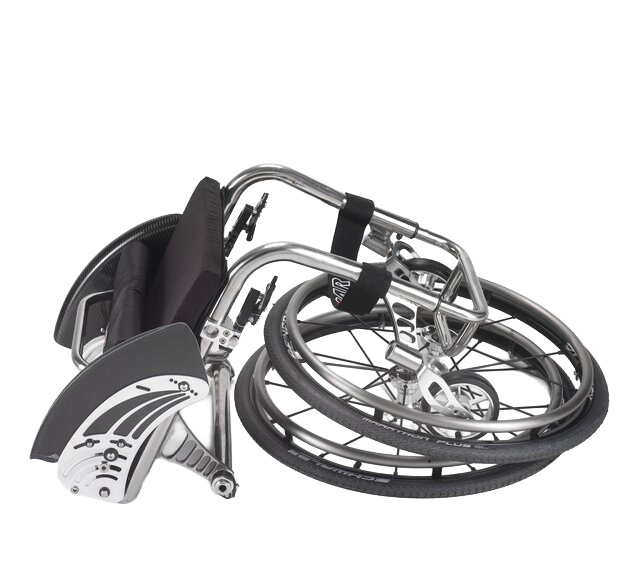

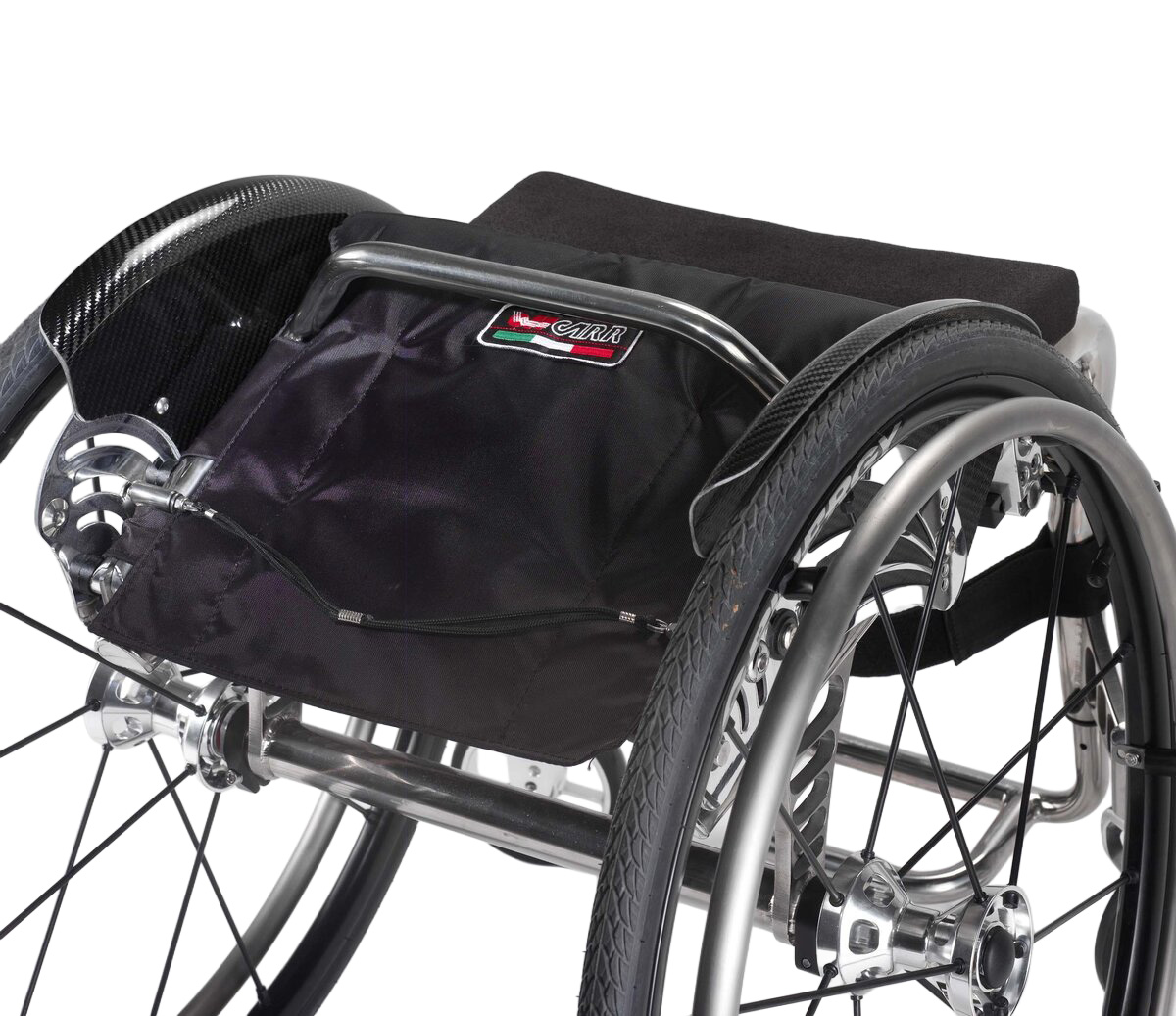

In detail
Maximum agility

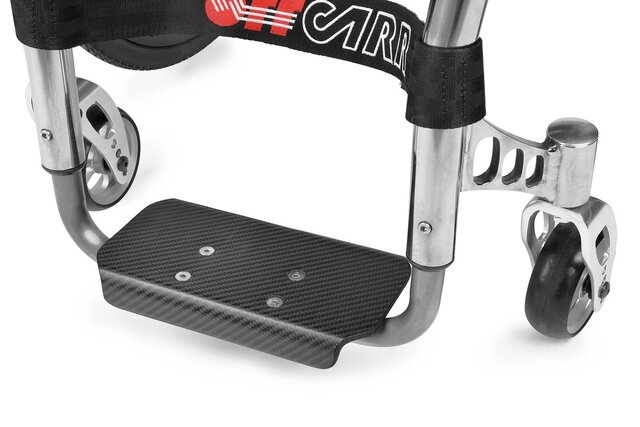

The technical features of EOS are lighter than ever to reduce the total weight of the wheelchair; maximum agility depends also on it. In addition to this sideguards and carbon footplate make the difference in responsiveness. EOS is unique and you can understand it only by pushing the wheelchair.
Choose your best
Three different frame shapes are available for EOS' front frame: choose an ergo seat to obtain a unique silhouette for your personal orthopaedic wheelchair. Choose a colour for your anodized set and make a matching set of colours between frame, wheels, sideguard support and wheel hubs. EOS is captivating and dynamic, a top quality model you will fall in love with.
Choose the rules
EOS' frame is available in two versions: fixed or adjustable axle. The last version is a concrete answer to the user still looking for the right set up. An adjustable axle allows you to modify it whenever you want. You choose the rules: EOS only adapts to your needs and comes with you in everyday tasks with elegance and minimalism.
Variants and models
This product is available in the following variants:
| Variant | Axle | Weight | Transport weight |
|---|---|---|---|
| Eos Asse Fisso | Fixed | from 7.5 kg | from 4.4 kg |
| Eos Asse Regolabile | Adjustable | from 7.8 kg | from 4.7 kg |
Technical specifications
Technical and performance data
- Frame
- Rigid
- Material
- Titanium
- UDI-DI
- 8053904842308
- Tube section
- 31.7 mm
- Weight
- from 7.5 kg (38×40 cm seat)
- Transport weight
- from 4.4 kg
- Maximum load
- 120 kg
- Axle
- Fixed / Adjustable
- Removable footrests
- No
- Rear wheels
- 24″, 25″
- Front casters
- 80 mm, 100 mm, 125 mm
- Frame colours
- Available in 32 colours
- Crash tested
- No
Measurements and dimensions
All configurable measurements
Seat
- Seat widthL
- 34–48 cm 2 cm steps
- Backrest heightHS
- 27–41 cm 2 cm steps
- Seat depthP
- 36–50 cm 2 cm steps
- Seat heightHA · HP
- HA 46–50 cmHP 40–48 cm 2 cm steps
Overall dimensions
- Width with wheels
- L + 20 cm (1° camber)L + 26 cm (4° camber) front casters: +11 cm on L 44 and 46; Light wheels
- Width without wheels
- L + 9 cm
- Minimum frame footprint
- height ≈ 41 cmlength ≈ 79 cm HP 42 cm · P 40 cm
- Overall length
- ≈ 82 cm P 40 cm · COG 9 cm · α 83°
Some measurements are averaged.
Options and configurations
The choices that characterise this model — every option is in the order form
Downloads
Documentation for this model
They go well together.
Seating, backrest and add-ons that complete Eos.
Other models.
Heka.
Welded titanium, bespoke to the centimetre
- Weight
- from 7.6 kg
- Transport
- from 4.6 kg
Quasar / Quasar GT.
Closed titanium frame, from 7 kg
- Weight
- from 7.0 kg
- Transport
- from 4.0 kg
- Family
- Quasar
The images are indicative: accessories may vary with the supply batch. Some accessories may not always be available, or compatible with the wheelchair and the options chosen. The wheelchairs in the photographs are not always in their base setup. OFFCARR may change and improve its products without notice.
