Weight
10.5kg
Maximum load
150kg
Seat width
34–54cm
Rear wheels
24″ · 25″
ULTRALIGHT POWER

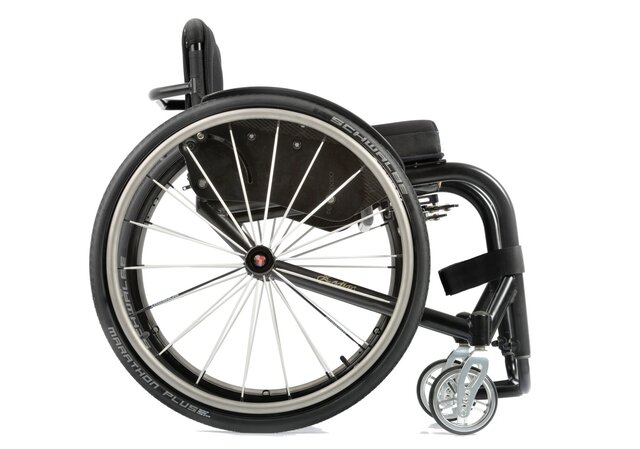

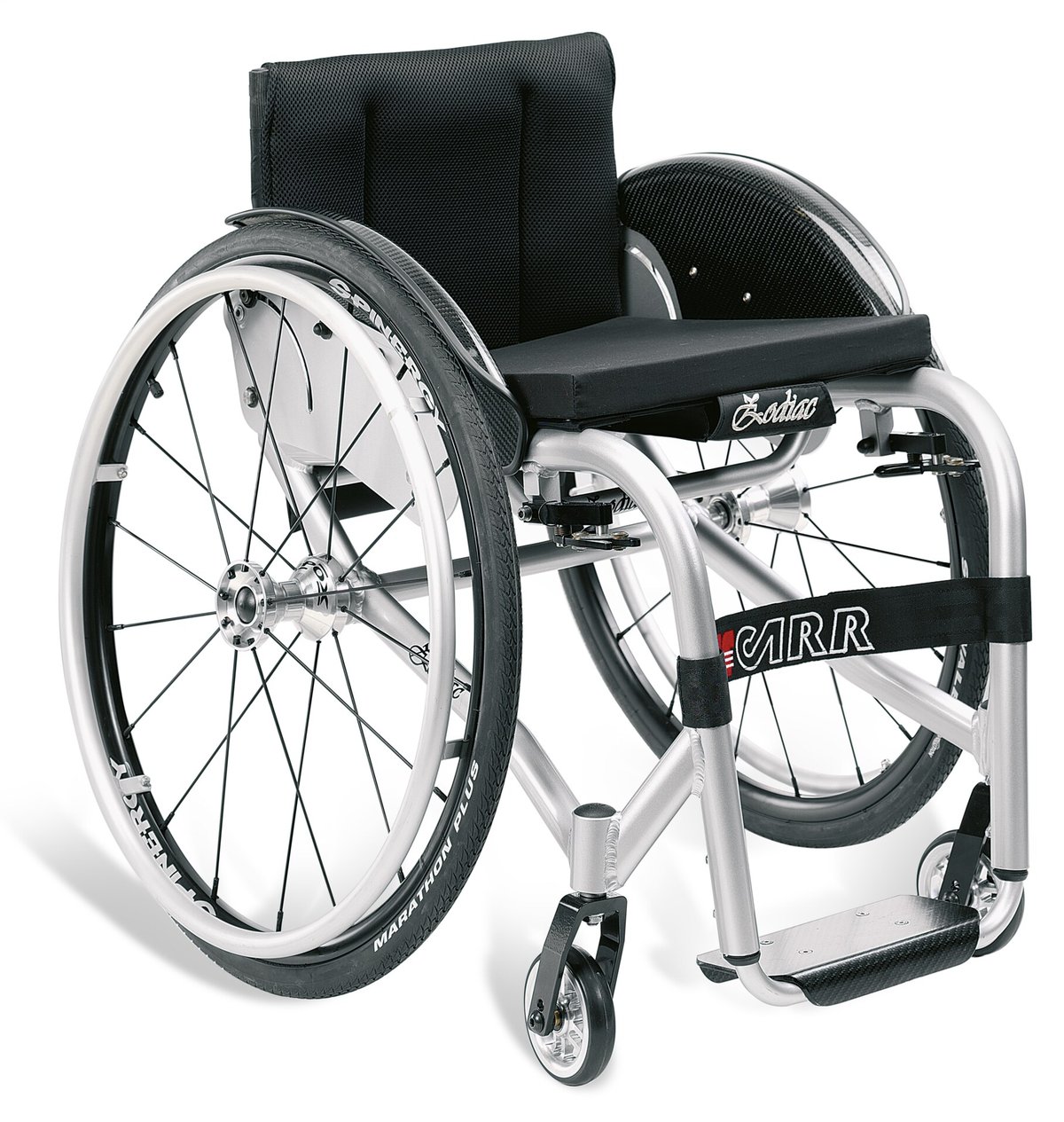

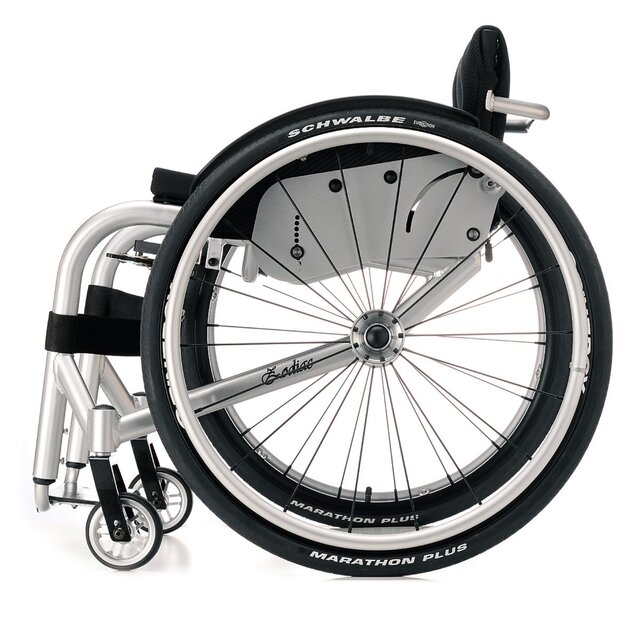

The aluminium rigid frame of the orthopaedic wheelchair ZODIAC is synonim of solidity and smoothness. Ultralight frame, rigid axle, great variety of possible configurations. The lines of ZODIAC’s frame are strong and powerful: great potential is visible on every edge of this special wheelchair.
TRUST ME
An ultralight wheelchair model created on your needs to make you feel safer on your everyday tasks. ZODIAC is creativity and trust, maximum support even for great loads.
In detail
VALUABLE FEATURES

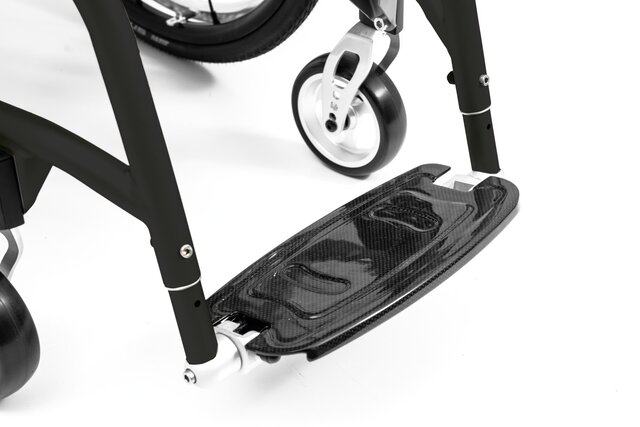

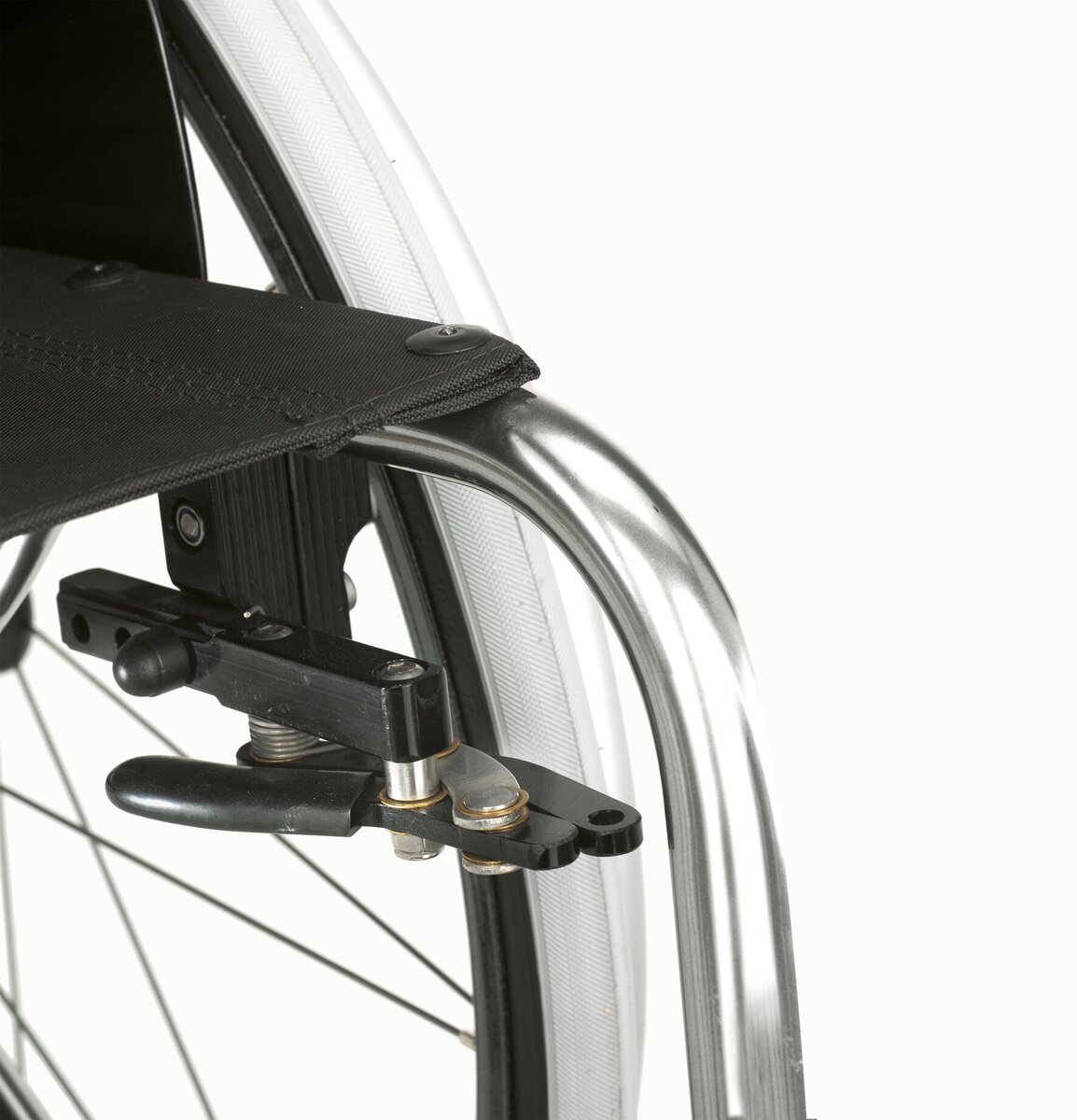

ZODIAC believes in the perfection of its details: leave all the boundaries behind and express yourself in the best way you can. Let your wheelchair talk about you and your personality. Being creative means choosing a totally customized wheelchair. Valuable features like carbon details (foot-rest, sideguards etc) are waiting for your choice. ZODIAC’s backrest is tilt-adjustable and folds down towards the seat to help you hop on and off transport means easily.
TAKES UP LESS SPACE
Like every orthopaedic Offcarr wheelchair ZODIAC is endowed with quick-release rear wheels. This special feature helps you travelling safely and easily only by taking off the wheels (just push a simple button) and folding down the backrest. All the components and materials used to create your ZODIAC wheelchair are ultra resistant and light. The whole wheelchair is 100% customized on your needs.
Technical specifications
Technical and performance data
- Frame
- Rigid
- Material
- Aluminium
- UDI-DI
- 8053904842001
- Tube section
- Oval 32 x 28 mm
- Weight
- from 10.5 kg (38×40 cm seat)
- Transport weight
- from 7.6 kg
- Maximum load
- 150 kg
- Axle
- Fixed
- Removable footrests
- No
- Rear wheels
- 24″, 25″
- Front casters
- 80 mm, 100 mm, 125 mm, 150 mm, 175 mm
- Frame colours
- Available in 32 colours
- Crash tested
- Yes (maximum load 150 kg)
Measurements and dimensions
All configurable measurements
Seat
- Seat widthL
- 34–54 cm 2 cm steps
- Backrest heightHS
- 27–39 cm 2 cm steps
- Seat depthP
- 36–50 cm 2 cm steps
- Seat heightHA · HP
- HA 46–50 cmHP 40–46 cm 2 cm steps
Overall dimensions
- Width with wheels
- L + 22 cm (1° camber)L + 27 cm (4° camber) Light wheels
- Width without wheels
- L + 10 cm
- Minimum frame footprint
- height ≈ 40 cmlength ≈ 80 cm
- Overall length
- ≈ 83 cm P 40 cm · COG 9 cm
Some measurements are averaged.
Options and configurations
The choices that characterise this model — every option is in the order form
Downloads
Documentation for this model
They go well together.
Seating, backrest and add-ons that complete Zodiac.
Other models.

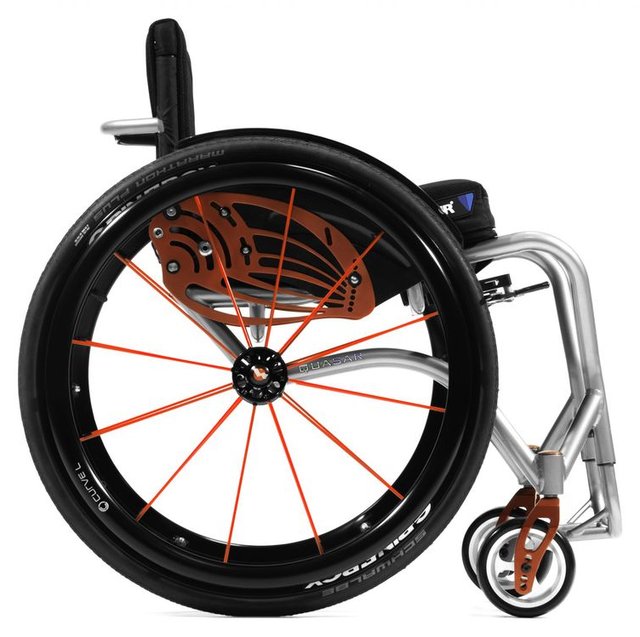

Quasar / Quasar GT.
